PRODUCT
VALVE
PRODUCTS
1. Gate, Globe, Check, Ball & butterfly valves for Industrial & Marine Use
2. Cryogenic valves, Bellows Seal valves
3. Dual Plate Check valves, Strainers (Y & T type)
4. Gear Box & Actuators

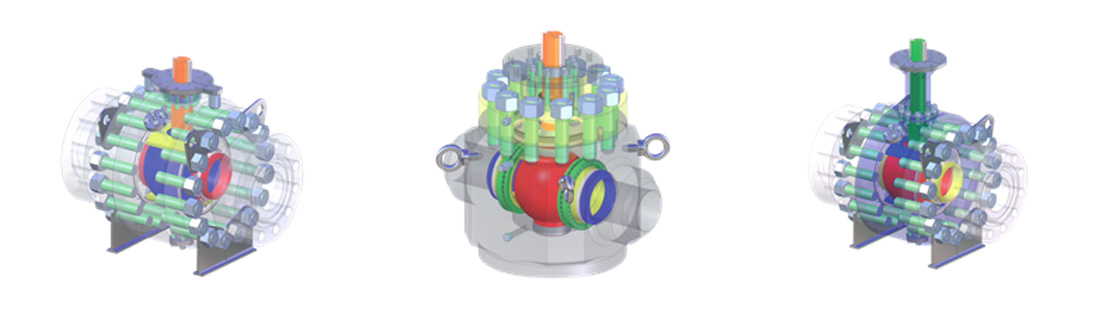

SIDE ENTRY BALL VALVE
- End Connection: Flanged, Butt weled.
| TYPE | MOUNT | 150 | 300 | 600 | 900 | 1500 |
| SPLIT BODY (2-3 Pieces) |
FLOATING | 1/2 ~ 8 | 1/2 ~ 8 | 1/2 ~ 4 | 1/2 ~ 2 | 1/2 ~ 2 |
| TRINNION | 1/2 ~ 60 | 1/2 ~ 60 | 1/2 ~ 48 | 1/2 ~ 36 | 1/2 ~ 24 |
PRODUCT MATERIAL
ㆍCarbon steel, Stainless steel, Alloy, Duplex, Special Alloy steel- End Connection: Flanged, Butt weled.
TOP ENTRY BALL VALVE
- End Connection: Socket welded, Threaded, Flanged, Butt weled.
| TYPE | MOUNT | 150 | 300 | 600 | 900 | 1500 |
| SPLIT BODY (top entry) |
FLOATING | 1/2 ~ 6 | 1/2 ~ 6 | 1/2 ~ 2 | 1/2 ~ 2 | 1/2 ~ 2 |
| TRINNION | 1/2 ~ 48 | 1/2 ~ 48 | 1/2 ~ 36 | 1/2 ~ 24 | 1/2 ~ 12 |
PRODUCT MATERIAL
ㆍCarbon steel, Stainless steel, Alloy, Duplex, Special Alloy steel- End Connection: Socket welded, Threaded, Flanged, Butt weled.
CRYOGENIC BALL VALVE
ㆍCasting Stainless steel: ASTM A351 CF8, CF8M, CF3, CF3M, Etc
- End Connection: Socket welded, Threaded, Flanged, Butt weled
| TYPE | MOUNT | 150 | 300 | 600 | 900 | 1500 |
| SPLIT BODY (2-3 Pieces) |
FLOATING | 1/2 ~ 8 | 1/2 ~ 8 | 1/2 ~ 4 | 1/2 ~ 2 | 1/2 ~ 2 |
| TRINNION | 1/2 ~ 60 | 1/2 ~ 60 | 1/2 ~ 48 | 1/2 ~ 36 | 1/2 ~ 24 |
PRODUCT MATERIAL
ㆍForged Stainless steel: ASTM A183 F304(L), F316(L), F321, Etc.ㆍCasting Stainless steel: ASTM A351 CF8, CF8M, CF3, CF3M, Etc
- End Connection: Socket welded, Threaded, Flanged, Butt weled

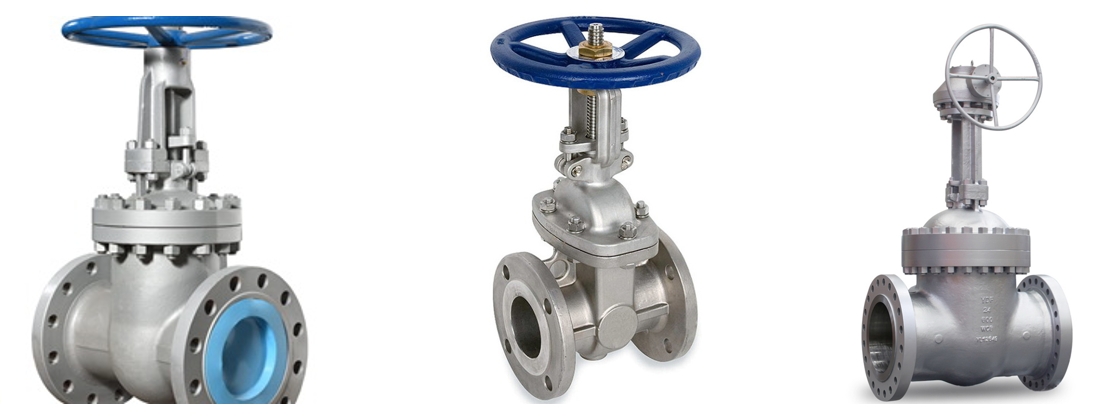

GATE VALVE
ㆍAlloy steel: ASTM A217 WC6, WC9, C5, C12, C12A
ㆍStainless steel: ASTM A351 CF8, CF8M, CF3, CF3M or Equivalent
ㆍDuplex and Special Alloy steel
| CLASS | 150 | 300 | 600 | 900 | 1500 |
| BOLTED BONNET | 2-96 | 2-80 | 2-48 | 2-48 | 2-48 |
| PRESSURE SEAL BONNET | - | - | 2-60 | 2-48 | 2-48 |
PRODUCT MATERIAL
ㆍCarbon steel: ASTM A216 WCB or EquivalentㆍAlloy steel: ASTM A217 WC6, WC9, C5, C12, C12A
ㆍStainless steel: ASTM A351 CF8, CF8M, CF3, CF3M or Equivalent
ㆍDuplex and Special Alloy steel

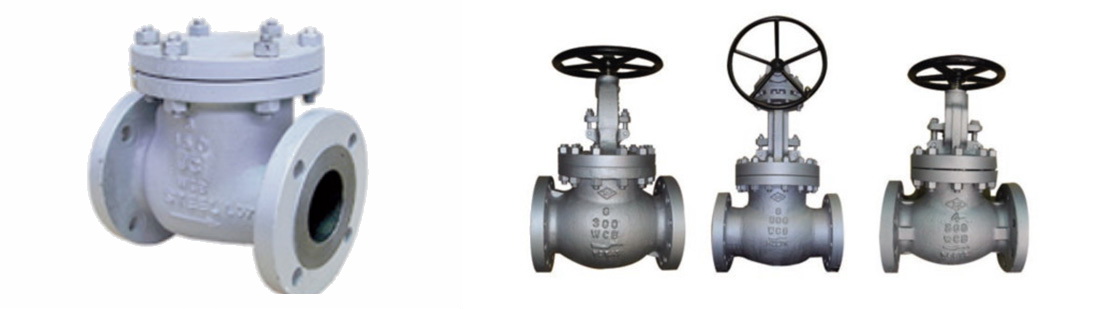

GLOBE / CHECK VALVE
ㆍAlloy steel: ASTM A217 WC6, WC9, C5, C12, C12A
ㆍStainless steel: ASTM A351 CF8, CF8M, CF3, CF3M or Equivalent
ㆍDuplex and Special Alloy steel
| CLASS | 150 | 300 | 600 | 900 | 1500 |
| BOLTED BONNET | 2-24 | 2-24 | 2-24 | 2-24 | 2-24 |
| PRESSURE SEAL BONNET | - | - | 2-24 | 2-24 | 2-24 |
PRODUCT MATERIAL
ㆍCarbon steel: ASTM A216 WCB or EquivalentㆍAlloy steel: ASTM A217 WC6, WC9, C5, C12, C12A
ㆍStainless steel: ASTM A351 CF8, CF8M, CF3, CF3M or Equivalent
ㆍDuplex and Special Alloy steel
ㆍALSO AVAILABLE
ㆍMETAL SEAT / JAKETED BALL VALVE, DOUBLE BLOCK BALL VALVE
ㆍBUTTERFLY VALVE, DUAL CHECK VALVE, STRAINER
ㆍMETAL SEAT / JAKETED BALL VALVE, DOUBLE BLOCK BALL VALVE
ㆍBUTTERFLY VALVE, DUAL CHECK VALVE, STRAINER
