VALVE SPARE PARTS

GASKET INFORMATION
TYPE Sprial Wound Gasket(In Ring) Sprial Wound Gasket(In/Out Ring)
MAIN COMPONENTS Filler : Graphite / Hoop : Metal / Inner Ring : Metal Filler : Graphite / Hoop : Metal / Inner Ring : Metal / Out Ring : Metal
MAIN PURPOSE Water.Steam,Seawater,Oil,Gas,Ammonia,Oxygen,Lique gas Water,Steam,Seawater,Oil,Gas,Ammonia
TEMPERATURE OF USE ~-270~+600°C ~-270~+600°C
PRESSURE IN USE ~43.1MPaG(Class 2500) ~43.1MPaG(Class 2500)
SIZE 2"~ 2"~
TYPE Pressure Seal Ring,Semi metal GASEKT Metal GASKET
MAIN COMPONENTS Graphite,Stainless Steel SUS304, SUS316, SOFT IRON, INCONELL,ETC
MAIN PURPOSE Water.Steam,Seawater,Oil,Gas,Ammonia,Oxygen,Lique gas Oil,Gas and more
TEMPERATURE OF USE ~+650°C
PRESSURE IN USE Class 600~Class 4500 Class 150~
SIZE 2"~ 2"~
PACKING INFORMATION

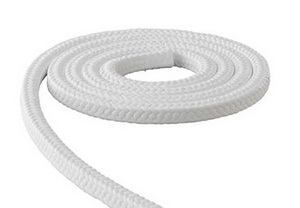

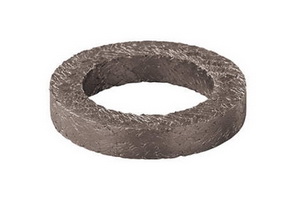

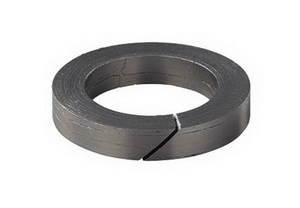

TYPE Die Formed Ring Packing Die Formed Ring Packing(Adapter Packing) Die Formed Ring Packing
MAIN COMPONENTS Graphite Graphite,Inconel,Specia lubricant PTFE
MAIN PURPOSE Water,Steam,Oil,Gas,LNG,Strong acid,Steel alkali
High temperature high pressure valve,High pressure gas valve		 Water,Steam,Oil,Gas,LNG,Strong acid,Steel alkali
High temperature high pressure valve,High pressure gas valve		 Valve using solvents,Strong acids and strong alkali
TEMPERATURE OF USE ~-270~+650°C ~-270~+650°C ~+260°C
PRESSURE IN USE ~43.1MPaG(Class 2500) ~43.1MPaG(Class 2500) ~1.0MPaG(Class 600)
SIZE 2"~ 2"~ 2"~
GEAR BOX
Bevel Gear Bevel Gear Worm Gear Spur Gear
